Place of Origin: china
ブランド名: yongsheng
Model Number: csd350
支払及び船積みの言葉
Minimum Order Quantity: 1
価格: 308412usd/piece
Packaging Details: Container
Delivery Time: 60 work days
Payment Terms: T/T,L/C
Supply Ability: 100piece/Year
Customized: |
customized |
Condition: |
new |
Warranty: |
1 year |
Water Flow: |
1800-2200m3/h |
Solid Capacity: |
360 cbm/h |
Max.Dredging Depth 45°: |
12m |
Discharge Distance: |
1200m |
Dredger After Assembly: |
36*5.8*1.5m Length*width*depth |
Dredger Structure: |
Can Be Assembly in Working Site |
Average Draught: |
1m |
Diameter Discharge Pipe: |
350mm/14inch |
Total Power: |
971kw |
Main Engine: |
746kw |
Auxiliary Engine Power: |
201kw |
Generator: |
16 kw |
Hydraulic Cutter Powerr: |
55 kw |
Customized: |
customized |
Condition: |
new |
Warranty: |
1 year |
Water Flow: |
1800-2200m3/h |
Solid Capacity: |
360 cbm/h |
Max.Dredging Depth 45°: |
12m |
Discharge Distance: |
1200m |
Dredger After Assembly: |
36*5.8*1.5m Length*width*depth |
Dredger Structure: |
Can Be Assembly in Working Site |
Average Draught: |
1m |
Diameter Discharge Pipe: |
350mm/14inch |
Total Power: |
971kw |
Main Engine: |
746kw |
Auxiliary Engine Power: |
201kw |
Generator: |
16 kw |
Hydraulic Cutter Powerr: |
55 kw |
Cutter suction dredger can apply to most kinds of soil structures and is widely used in mineral digging,
river and port dredging and reclamation work. With the advantages of higher efficiency, stronger construction,
better economic performance and lower operating costs, cutter suction dredgers can be reliably operated
in complicated project conditions.

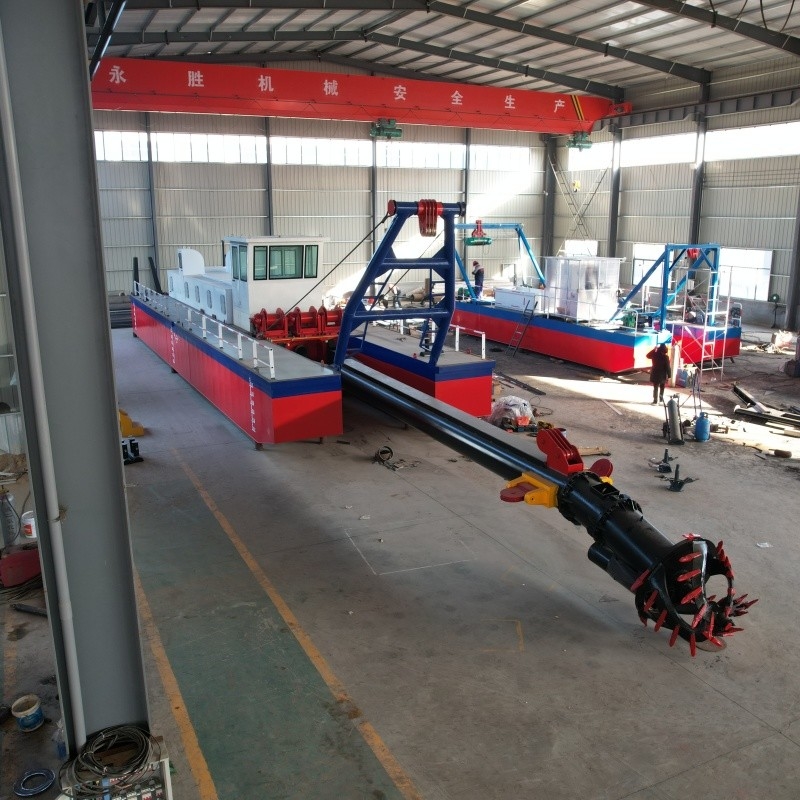

The main structure of a cutter suction dredger includes the hull, cutter, suction pipe, pump body, and
discharge pipe. The cutter is a key component of a cutter suction dredger, usually installed at the bow
or side of the ship. By rotating the cutter, the sediment at the bottom of the water is crushed and mixed
with water to form mud. The suction pipe is used to suck mud into the pump body, which transports the
mud to the discharge area through the discharge pipe.
| Model list for hydraulic cutter suction dredger | |||||||
| Model | Inch | Diameter pipe | Water flow | Solid capacity |
Total power | Dredging depth | Discharge distance |
| YSCSD150 | 6 Inch | 150 mm | 260 m3/h | 30 cbm/h | 102 KW | 4m | 600 m |
| YSCSD200 | 8 Inch | 200 mm | 600 m3/h | 80 cbm/h | 213 KW | 6m | 800 m |
| YSCSD250 | 10 inch | 250 mm | 1,000 m3/h | 160 cbm/h | 367 KW | 8m | 1,100 m |
| YSCSD300 | 12 inch | 300 mm | 1,500 m3/h | 240 cbm/h | 591 KW | 10 m | 1,100 m |
| YSCSD350 | 14 inch | 350 mm | 2,400 m3/h | 360 cbm/h | 971 KW | 12m | 1,200 m |
| YSCSD400 | 16 Inch | 400 mm | 3,000 m3/h | 500 cbm/h | 1,057 KW | 14m | 1,400 m |
| YSCSD450 | 18 Inch | 450 mm | 3,500 m3/h | 700 cbm/h | 1,462 KW | 15m | 1,500 m |
| YSCSD500 | 20 Inch | 500 mm | 3,800 m3/h | 760 cbm/h | 1,648 KW | 15m | 1,600m |
| YSCSD600 | 24 Inch | 600 mm | 6,000 m3/h | 900 cbm/h | 2,511 KW | 15m | 1,800 m |
| YSCSD650 | 26 Inch | 650 mm | 7,000 m3/h | 1,400 cbm/h | 3,705 KW | Max.18m | 1,800m |
Advantage
* Heavy-duty, high concentration ratio, excellent particle allowance, and long discharge distance
* Optimal configuration of power and hydraulic unit (less operating costs)
* Dismountable structure, easy to disassemble, and transportation.
* Double powerful auger drive (infinitely for- and backward)
* High working range of the outrigger arm
* Equipped with a self-propulsion system that can be moved to a different work site or drag by tugboat
* Cutter suction head can be changed for different situation
* Easy access to all parts, especially the dredge pump wearing parts.
* Freshwater cooling system.
* Safe and easy to operate
*Can be designed and fabricated according to your requirements
FAQ:
Need for reply:
1. How many cubic meter per hour for the clear water flow?
2. How many meters for the dredging depth?
3. How many meters for the discharge distance?
4. Will you use the dredger in the river,lake,sea or channel?
