Place of Origin: china
ブランド名: yongsheng
Model Number: csd600
支払及び船積みの言葉
Minimum Order Quantity: 1
価格: 1450000usd/piece
Packaging Details: Container
Delivery Time: 60 work days
Payment Terms: T/T,L/C
Supply Ability: 100piece/Year
Customized: |
customized |
Condition: |
new |
Warranty: |
1 year |
Water Flow: |
6000m3/h |
Solid Capacity: |
900cbm/h |
Max.Dredging Depth 45°: |
15m |
Discharge Distance: |
2000m |
Dredger After Assembly: |
48*9.4*2.8 M Length*Width*Depth |
Dredger Structure: |
Can Be Assembly in Working Site |
Average Draught: |
1.8m |
Diameter Discharge Pipe: |
600mm/24inch |
Total Power: |
2511kw |
Main Engine: |
1715 Kw |
Auxiliary Engine Power: |
746kw |
Generator: |
50kw |
Hydraulic Cutter Powerr: |
440kw |
Customized: |
customized |
Condition: |
new |
Warranty: |
1 year |
Water Flow: |
6000m3/h |
Solid Capacity: |
900cbm/h |
Max.Dredging Depth 45°: |
15m |
Discharge Distance: |
2000m |
Dredger After Assembly: |
48*9.4*2.8 M Length*Width*Depth |
Dredger Structure: |
Can Be Assembly in Working Site |
Average Draught: |
1.8m |
Diameter Discharge Pipe: |
600mm/24inch |
Total Power: |
2511kw |
Main Engine: |
1715 Kw |
Auxiliary Engine Power: |
746kw |
Generator: |
50kw |
Hydraulic Cutter Powerr: |
440kw |

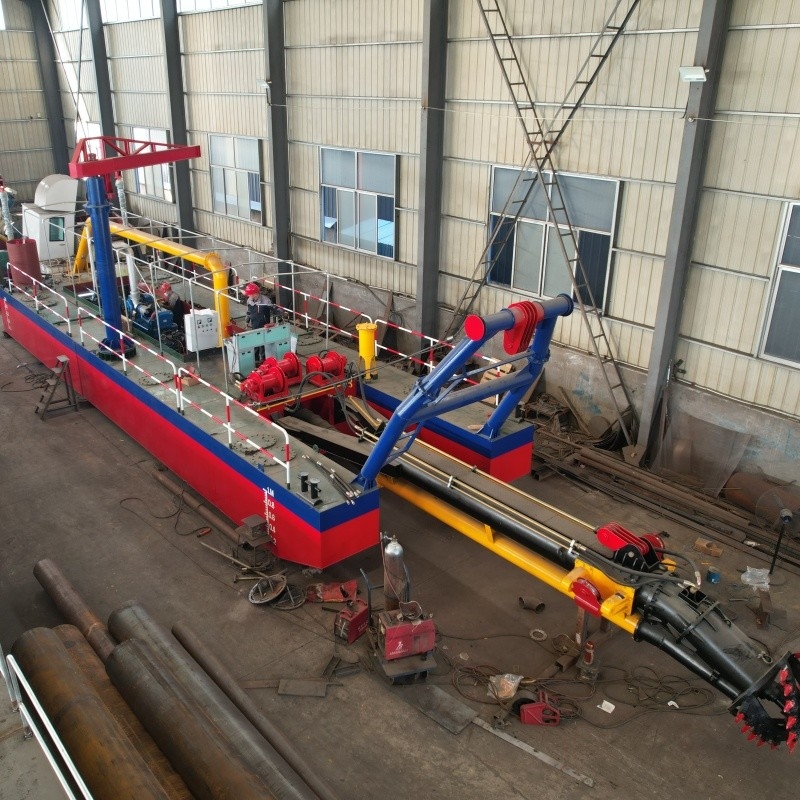

The hull uses dismantle and box-like structure, which equipped with horizontal shifting devices, cutter ladder lifting devices,
spud devices, deck crane and so on. It can also be equipped with anchoring poles and trolley devices.
Generally,it has functions on dredging, conveying and discharging of mud and sand. It can produce certain
amount of vacuum by the centrifugal pump.
The dredge pump is driven by the main diesel engine through the reducing gear box.
The Alternator, which driven by the auxiliary diesel engine supplies electricity for power and lighting of the whole
dredger.
Generator sets supplies electricity for lighting and emergency use when it doesn't working.
Cutter head is driven by hydraulic motor; cutter bearing has lubrication seal-in units.
The dredger is moved by alternate swing of the spuds. The spuds are lifted by the hydraulic cylinder.
| Model list for hydraulic cutter suction dredger | |||||||
| Model | Inch |
Diameter pipe |
Water flow | Solid capacity |
Total power |
Dredging depth |
Discharge distance |
| YSCSD150 | 6 Inch | 150 mm | 260 m3/h | 30 cbm/h | 102 KW | 4m | 600 m |
| YSCSD200 | 8 Inch | 200 mm | 600 m3/h | 80 cbm/h | 213 KW | 6m | 800 m |
| YSCSD250 | 10 inch | 250 mm | 1,000 m3/h | 160 cbm/h | 367 KW | 8m | 1,100 m |
| YSCSD300 | 12 inch | 300 mm | 1,500 m3/h | 240 cbm/h | 591 KW | 10 m | 1,100 m |
| YSCSD350 | 14 inch | 350 mm | 2,400 m3/h | 360 cbm/h | 971 KW | 12m | 1,200 m |
| YSCSD400 | 16 Inch | 400 mm | 3,000 m3/h | 500 cbm/h | 1,057 KW | 14m | 1,400 m |
| YSCSD450 | 18 Inch | 450 mm | 3,500 m3/h | 700 cbm/h | 1,462 KW | 15m | 1,500 m |
| YSCSD500 | 20 Inch | 500 mm | 3,800 m3/h | 760 cbm/h | 1,648 KW | 15m | 1,600m |
| YSCSD600 | 24 Inch | 600 mm | 6,000 m3/h | 900 cbm/h | 2,511 KW | 15m | 1,800 m |
| YSCSD650 | 26 Inch | 650 mm | 7,000 m3/h | 1,400 cbm/h | 3,705 KW | Max.18m | 1,800m |
FAQ:
Need for reply:
1. How many cubic meter per hour for the clear water flow?
2. How many meters for the dredging depth?
3. How many meters for the discharge distance?
4. Will you use the dredger in the river,lake,sea or channel?
