Shandong Yongsheng Dredging Machinery Co., Ltd. yongshengdredger@machineys.com 86--13953662777
製品詳細
Place of Origin: shandong
ブランド名: yongsheng
Model Number: YSJSD250
支払及び船積みの言葉
Minimum Order Quantity: 1
Packaging Details: container
Delivery Time: 40days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Capacity: |
150-180m3/h |
Water flow: |
900m3/h |
Dredging depth: |
10m |
Discharge distance: |
800m |
Main engine: |
294KW |
Auxiliary engine: |
88KW |
Fuel consumption: |
60L/H |
Dimension(L*W*H): |
17*5*1.2m |
Capacity: |
150-180m3/h |
Water flow: |
900m3/h |
Dredging depth: |
10m |
Discharge distance: |
800m |
Main engine: |
294KW |
Auxiliary engine: |
88KW |
Fuel consumption: |
60L/H |
Dimension(L*W*H): |
17*5*1.2m |
| Capacity | 150-180m³/h |
| Water Flow | 900m³/h |
| Dredging Depth | 10m |
| Discharge Distance | 800m |
| Main Engine | 294KW |
| Auxiliary Engine | 88KW |
| Fuel Consumption | 60L/H |
| Dimensions (L×W×H) | 17×5×1.2m |

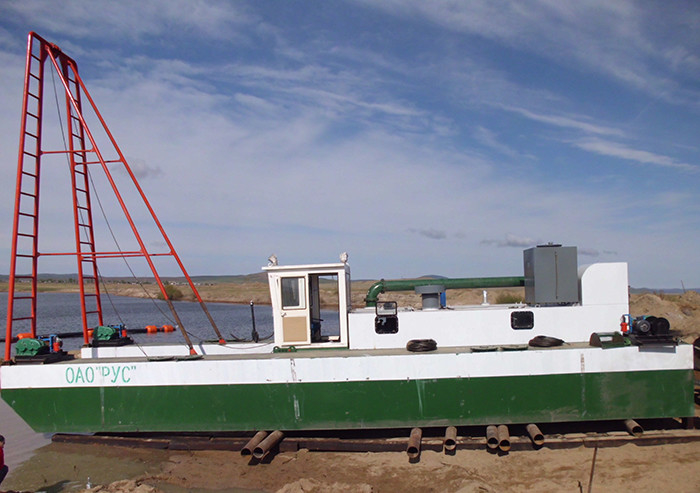

Sand pumping vessels represent the pinnacle of modern engineering and shipbuilding technology. These essential machines serve critical roles in underwater resource development (sand and gravel extraction), water environment management (dredging operations), and major infrastructure projects (land reclamation, waterway and port construction). With continuous technological advancements, modern dredgers are evolving to become smarter, more efficient, and more environmentally sustainable.
| Model | Capacity | Water Flow | Dredging Depth | Discharge Distance | Main Engine | Auxiliary Engine | Fuel Consumption | Dimensions |
|---|---|---|---|---|---|---|---|---|
| YSJSD150 | 40-50m³/h | 250m³/h | 6m | 500m | 120KW | / | 18L/H | 10×3.8×1m |
| YSJSD200 | 80-100m³/h | 500m³/h | 8m | 500m | 176KW | 60KW | 40L/H | 14×4.5×1.2m |
| YSJSD250 | 150-180m³/h | 900m³/h | 10m | 800m | 294KW | 88KW | 60L/H | 17×5×1.2m |
| YSJSD300 | 200-250m³/h | 1400m³/h | 10m | 1000m | 456KW | 110KW | 80L/H | 20×6×1.5m |
| YSJSD350 | 300-400m³/h | 2000m³/h | 12m | 1500m | 735KW | 220KW | 120L/H | 24×6.6×1.6m |
| YSJSD400 | 400-500m³/h | 2600m³/h | 14m | 1500m | 882KW | 330KW | 150L/H | 24×7.2×1.8m |
| YSJSD450 | 500-600m³/h | 3000m³/h | 14m | 1500m | 1103KW | 406KW | 200L/H | 26×7.6×2m |
| YSJSD500 | 600-700m³/h | 3800m³/h | 14m | 1500m | 1250KW | 456KW | 240L/H | 26×7.6×2m |
Note: Technical parameters are for reference only. Final configuration depends on specific project requirements and conditions.
The dredger operates using negative pressure (suction) generated by a powerful pump (typically centrifugal or submersible) to extract sediment-water mixture (slurry) from underwater surfaces.
