Shandong Yongsheng Dredging Machinery Co., Ltd. yongshengdredger@machineys.com 86--13953662777
製品詳細
起源の場所: シャンドン
ブランド名: yongsheng
モデル番号: YSCSD500
支払及び船積みの言葉
最小注文数量: 1
パッケージの詳細: 容器
受渡し時間: 50days
支払条件: 信用状、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム
パイプ直径: |
500MM |
水流量: |
900 m3/h |
固有容量: |
900cbm/h |
主要なエンジン: |
1,193 kw カミンズエンジン |
最大掘削深さ 45°: |
15のM |
放出距離: |
1600m |
発電機: |
30KW |
液圧切断器の動力: |
220のKW |
パイプ直径: |
500MM |
水流量: |
900 m3/h |
固有容量: |
900cbm/h |
主要なエンジン: |
1,193 kw カミンズエンジン |
最大掘削深さ 45°: |
15のM |
放出距離: |
1600m |
発電機: |
30KW |
液圧切断器の動力: |
220のKW |
| Attribute | Value |
|---|---|
| Diameter pipe | 500mm |
| Water flow | 900 m³/h |
| Solid capacity | 900 cbm/h |
| Main Engine | 1,193 kW Cummins engine |
| Max. dredging depth 45° | 15 m |
| Discharge distance | 1,600 m |
| Generator | 30 kW |
| Hydraulic cutter power | 220 kW |

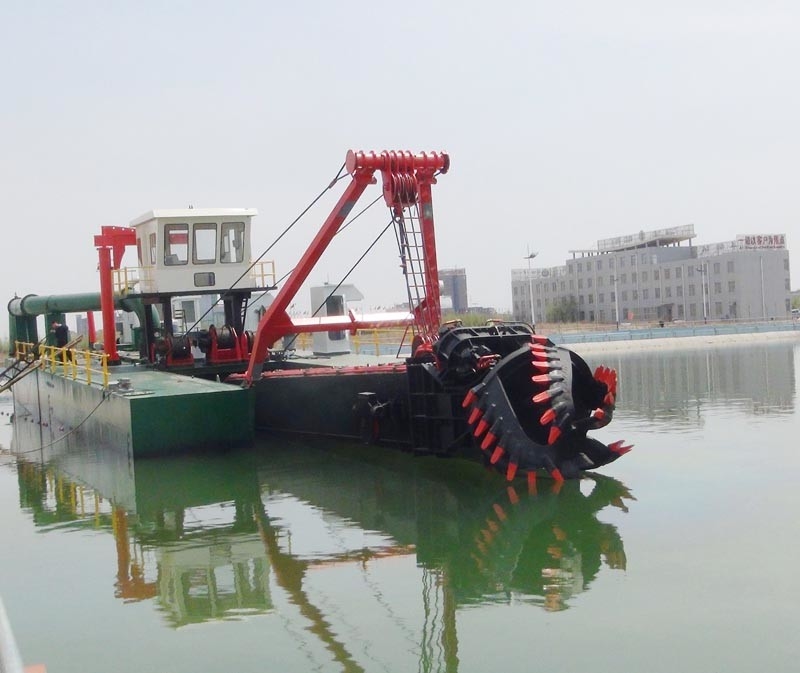

The cutter suction dredger is a highly efficient continuous underwater excavation system, widely used in channel dredging, port construction, land reclamation, water conservancy projects, and environmental dredging. This integrated system combines excavation, transportation, and discharge functions, making it essential for modern dredging operations.
| Water flow | 4,800 m³/h |
| Solid capacity | 900 cbm/h |
| Max. dredging depth 45° | 15 m |
| Discharge distance | 1,600 m |
| LOA | 47 m |
| Dimensions (L×W×D) | 47×8.8×2.5 m |
| Structure | Dismantle type for on-site assembly |
| Average draught | 1.6 m |
| Diameter discharge pipe | 500mm/20 inch |
| Main Engine | 1,193 kW Cummins engine |
| Rotate speed | 1,800 r/min |
| Auxiliary engine power | 425 kW Cummins engine |
| Total power | 1,648 kW |
Shandong Yongsheng Dredging Machinery Co., Ltd. operates from Qingzhou City, Shandong Province, with two production bases covering 2,000 m². With over 20 years of experience in water environmental protection equipment, we specialize in R&D, manufacturing, and comprehensive after-sales service. ISO9001 certified.
