製品詳細
起源の場所: 中国
ブランド名: yongsheng
モデル番号: CSD300
支払及び船積みの言葉
最小注文数量: 1
価格: 182529usd/piece
パッケージの詳細: 容器
受渡し時間: 60営業日
支払条件: T/T、L/C
供給の能力: 100ピース/年
カスタマイズ: |
カスタマイズ |
状態: |
新しい |
保証: |
1年 |
水の流れ: |
1200-1500M3/h |
固体容量: |
240 cbm/h |
max.dredging深さ45°: |
10m |
排出距離: |
1100m |
集会後のdredger: |
28.5*5.5*1.5mの長さ*幅*深さ |
dredger構造: |
作業サイトのアセンブリにすることができます |
平均ドラフト: |
1m |
直径放電パイプ: |
300mm/12inch |
総電力: |
591 kW |
メインエンジン: |
447 kW |
補助エンジンパワー: |
120kw |
ジェネレータ: |
16 kW |
油圧カッターパワー: |
55 kW |
カスタマイズ: |
カスタマイズ |
状態: |
新しい |
保証: |
1年 |
水の流れ: |
1200-1500M3/h |
固体容量: |
240 cbm/h |
max.dredging深さ45°: |
10m |
排出距離: |
1100m |
集会後のdredger: |
28.5*5.5*1.5mの長さ*幅*深さ |
dredger構造: |
作業サイトのアセンブリにすることができます |
平均ドラフト: |
1m |
直径放電パイプ: |
300mm/12inch |
総電力: |
591 kW |
メインエンジン: |
447 kW |
補助エンジンパワー: |
120kw |
ジェネレータ: |
16 kW |
油圧カッターパワー: |
55 kW |

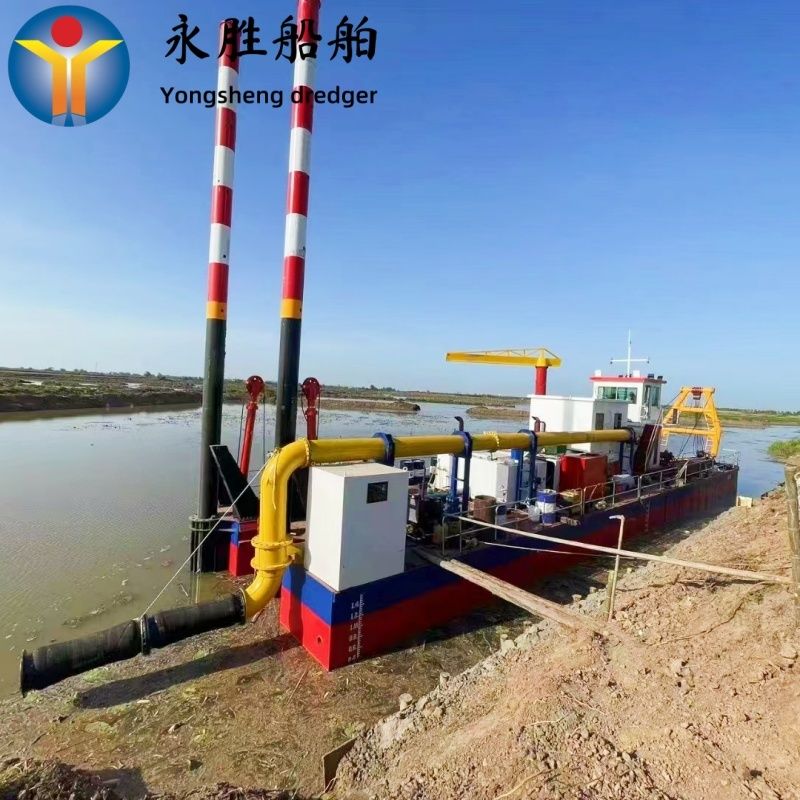

1. Our factory cutter suction dredger is widely used for river lake port and inside waterways etc.
Cutter suction dredgercan process sand mud gravel from all kinds of dredging project.
2. Our factory cutter suction dredger adopts good quality device to achieve the highest performance .
3. Let the customer spends the lowest cost to get the highest profit configuration of cumins diesel
engine ( otherwise can provide carter Weichai and others diesel engine brand) Shijiazhuang slurry
pump and hydraulic pump from the America or Germany. All configurations can reach the low failure
low fuel consumption high capacity and high efficiency.
| Model list for hydraulic cutter suction dredger | |||||||
| Model | Inch |
Diameter pipe |
Water flow |
Solid capacity |
Total power |
Dredging depth |
Discharge distance |
| YSCSD150 | 6 Inch | 150 mm | 260 m3/h | 30 cbm/h | 102 KW | 4m | 600 m |
| YSCSD200 | 8 Inch | 200 mm | 600 m3/h | 80 cbm/h | 213 KW | 6m | 800 m |
| YSCSD250 | 10 inch | 250 mm | 1,000 m3/h | 160 cbm/h | 367 KW | 8m | 1,100 m |
| YSCSD300 | 12 inch | 300 mm | 1,500 m3/h | 240 cbm/h | 591 KW | 10 m | 1,100 m |
| YSCSD350 | 14 inch | 350 mm | 2,400 m3/h | 360 cbm/h | 971 KW | 12m | 1,200 m |
| YSCSD400 | 16 Inch | 400 mm | 3,000 m3/h | 500 cbm/h | 1,057 KW | 14m | 1,400 m |
| YSCSD450 | 18 Inch | 450 mm | 3,500 m3/h | 700 cbm/h | 1,462 KW | 15m | 1,500 m |
| YSCSD500 | 20 Inch | 500 mm | 3,800 m3/h | 760 cbm/h | 1,648 KW | 15m | 1,600m |
| YSCSD600 | 24 Inch | 600 mm | 6,000 m3/h | 900 cbm/h | 2,511 KW | 15m | 1,800 m |
| YSCSD650 | 26 Inch | 650 mm | 7,000 m3/h | 1,400 cbm/h | 3,705 KW | Max.18m | 1,800m |
Our Advantages:
1.flexible payment terms:
2. perfect after-sale service
3. competitive -advantage price
4. on-time delivery
after sale service:
1. Our company signs a long-time after-sale service agreement with customers.
2. We provide rational and practical design according to customers' request.
3. We send engineers to assemble and test the machine within the period as agreed in the contract.
4. Within warranty period, we provide free repair if quality problems emerge.
5. We provide free training of operation and maintenance for customers.
6. We supply high quality accessories in low price.
